机器人焊接机
机器人焊接机
臂展1.4米。设计高度紧凑。工作空间大、运行速度快、重复定位精度高，适用范围广。
Arm span of 1.4 meters. The design is highly compact. Large workspace, fast running speed, high precision in repeated positioning, and wide applicability.
Arm span of 1.4 meters. The design is highly compact. Large workspace, fast running speed, high precision in repeated positioning, and wide applicability.
配置独立于控制系统的安全急停板，采用安全继电回路，对外提供双回路急停，确保急停的可靠性。
Configure a safety emergency stop board independent of the control system, using a safety relay circuit to provide dual circuit emergency stops externally, ensuring the reliability of emergency stops.
Configure a safety emergency stop board independent of the control system, using a safety relay circuit to provide dual circuit emergency stops externally, ensuring the reliability of emergency stops.

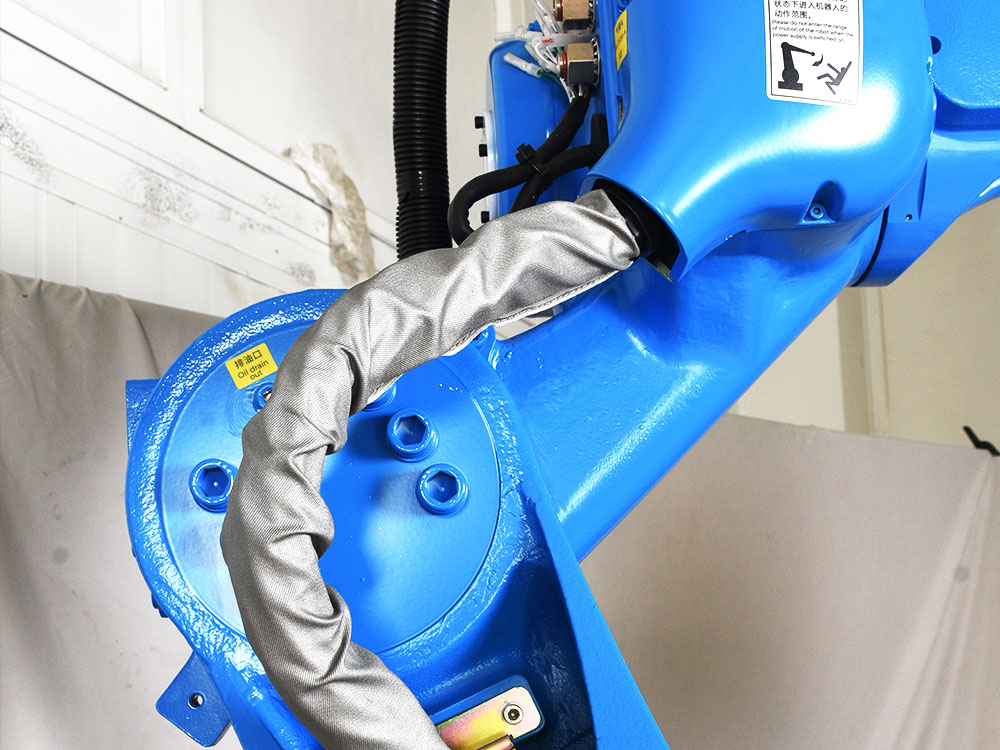

本体电缆采用高柔机器人专用电缆。
The main body cable adopts a high flexibility robot specific cable.
内置三相变压器，380V和220V进行隔离，电源更稳定。内装三相滤波器，有效改善EMC和EMI性能。
Built in three-phase transformer, isolating 380V and 220V for more stable power supply. Equipped with a three-phase filter, effectively improving EMC and EMI performance.
The main body cable adopts a high flexibility robot specific cable.
内置三相变压器，380V和220V进行隔离，电源更稳定。内装三相滤波器，有效改善EMC和EMI性能。
Built in three-phase transformer, isolating 380V and 220V for more stable power supply. Equipped with a three-phase filter, effectively improving EMC and EMI performance.
提供双回路气管，满足焊接的需求。
Provide dual circuit air pipes to meet welding needs.

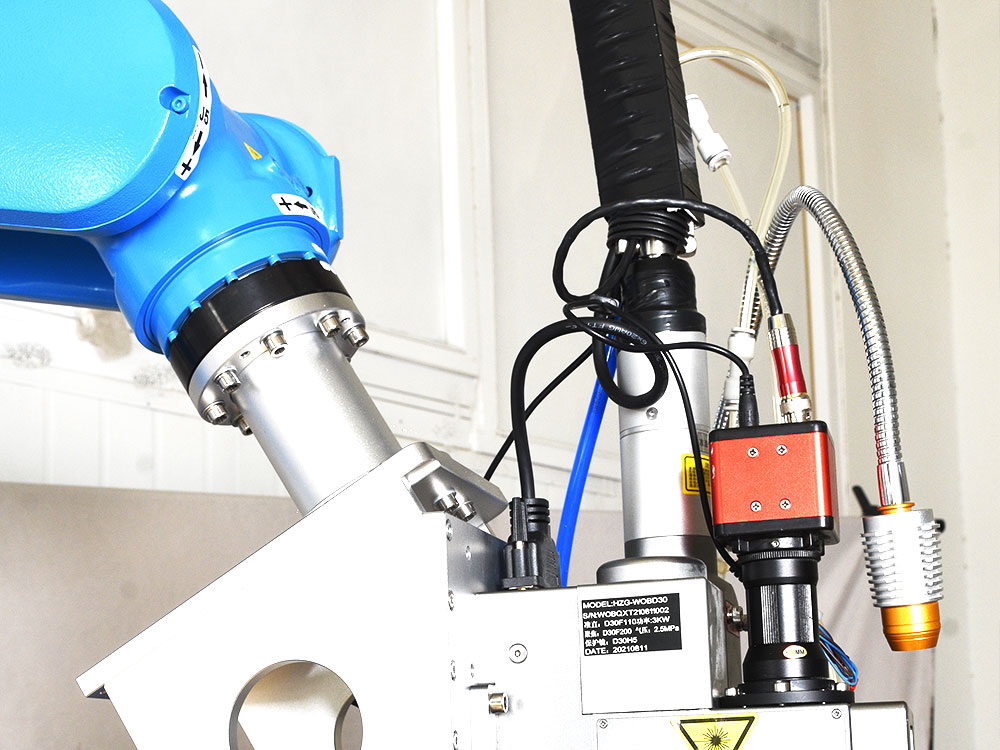

6轴的中孔内径为44mm，可满足水冷枪、波纹管枪的安装要求。
The inner diameter of the central hole of the 6-axis is 44mm, which can meet the installation requirements of water-cooled guns and corrugated pipe guns.
内置高柔焊接电缆。
Built in high flexibility welding cable.
Provide dual circuit air pipes to meet welding needs.
6轴的中孔内径为44mm，可满足水冷枪、波纹管枪的安装要求。
The inner diameter of the central hole of the 6-axis is 44mm, which can meet the installation requirements of water-cooled guns and corrugated pipe guns.
内置高柔焊接电缆。
Built in high flexibility welding cable.
产品参数
| 激光器型号 | 光纤激光器 |
| 激光功率 | 1000W，1500W，2000W，3000W |
| 激光波长 | 1070±10nm |
| 工作模式 | 连续/调制 |
| 焊接材质 | 碳钢、不锈钢、镀锌板、铝、铜等 |
| 控制系统 | ML激光控制系统 |
| 瞄准定位方式 | 红光指示与红光一字线(可选装 CCD 观察) |
| 冷却方式 | 循环水冷 |
| 平均功率 | 5.76KW 7.26KW8.1KW12.06W |
| 电力需求 | AC 220/380V 50Hz |
| 机器人重复精度 | 0.05 mm |
| 机械手臂展 | 1450mm |
| 机械手负载 | 10KG |
| 机器人轴数 | 6 轴 |

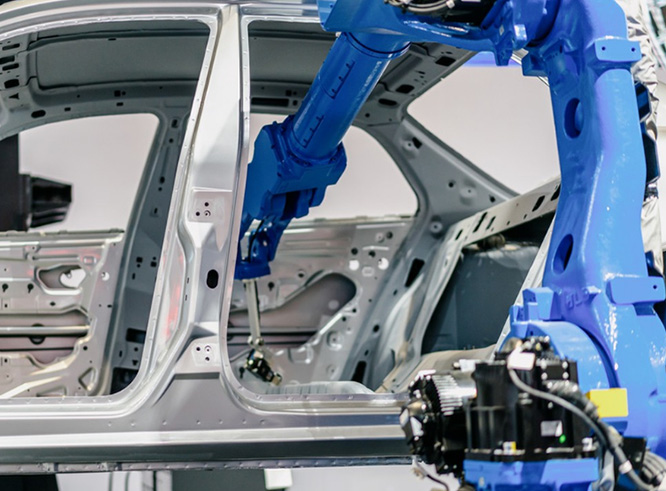

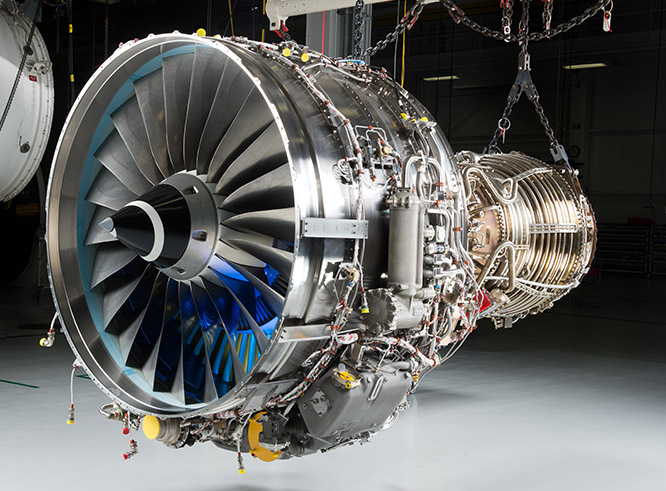

应用范围：汽车制造、船舶行业、五金制品、健身器材、航天航空、工程机械

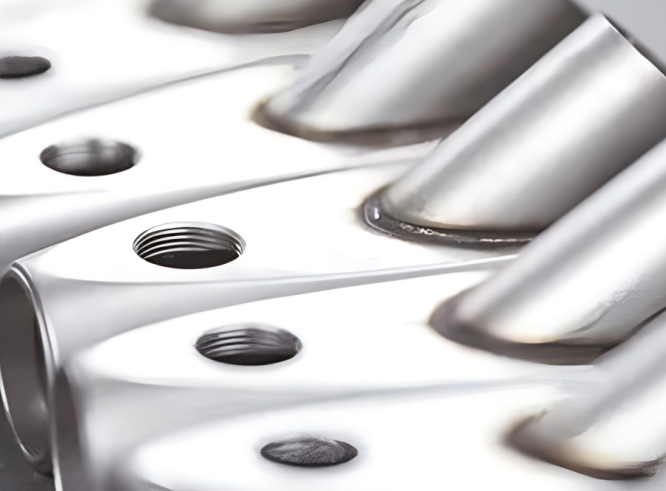

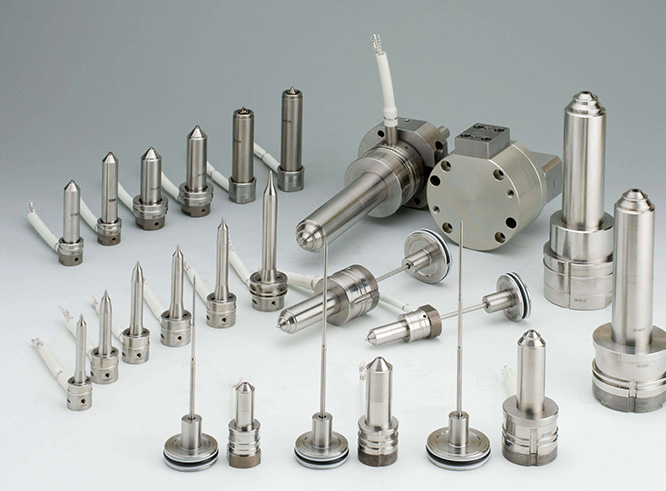

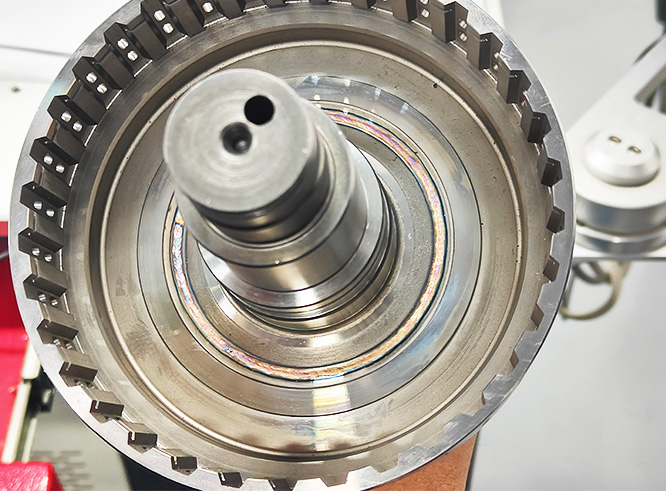

样品展示
